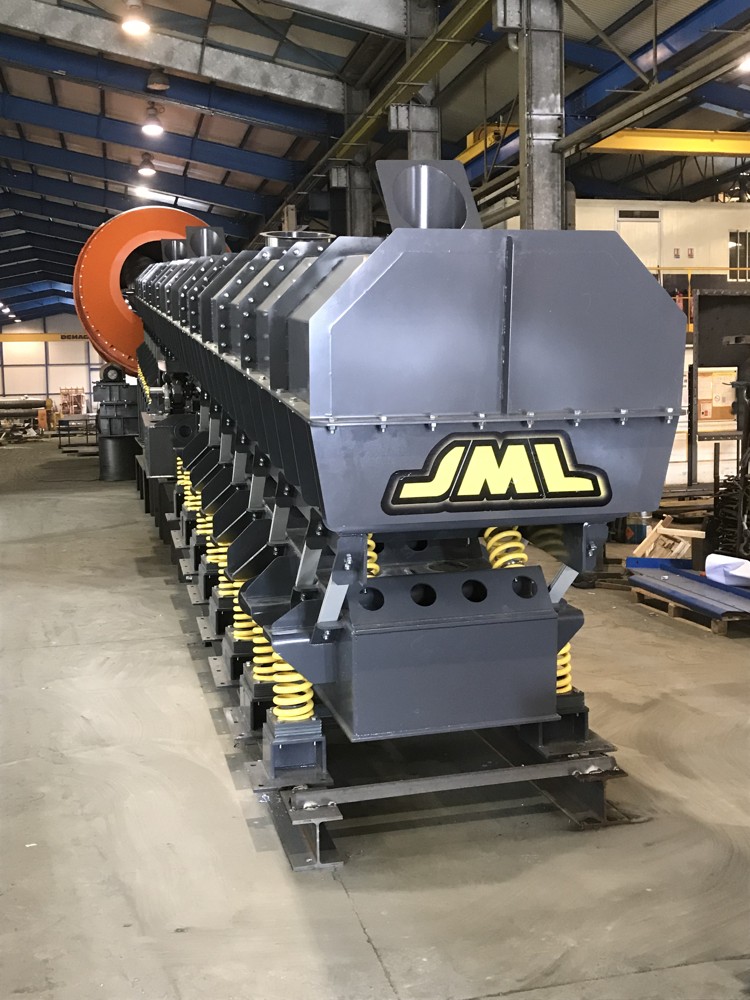

Vibrating conveyor

Description

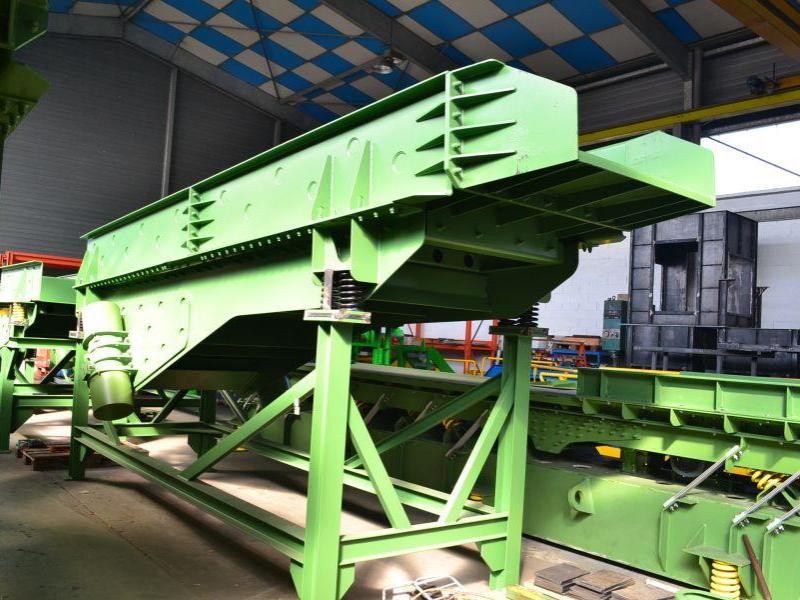

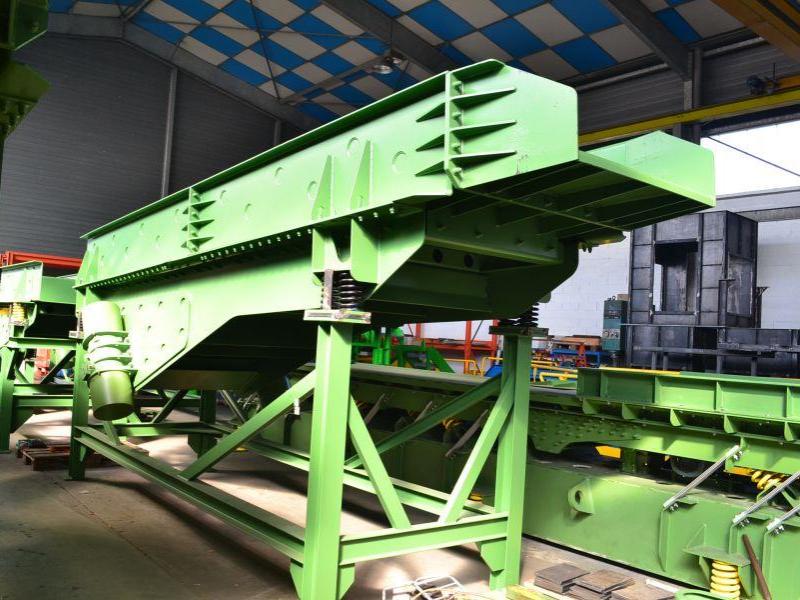

We offer two types of vibratory conveyors. The first can be used for feeding casting or sand with a low temperature.

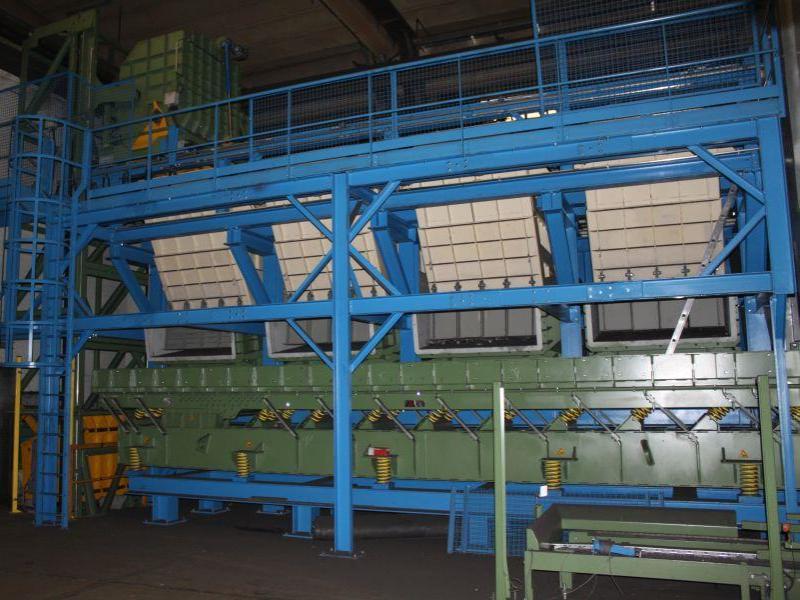

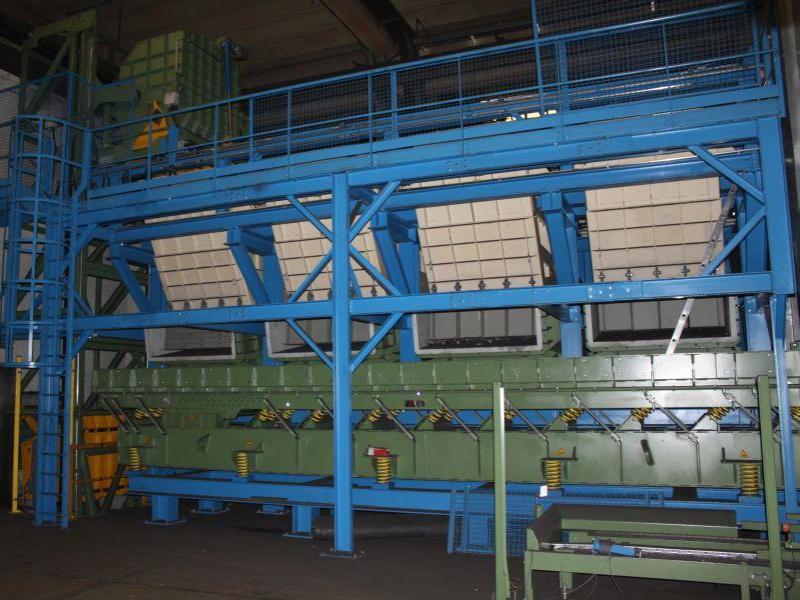

The second type should be used directly after the molding line for sand and/or casting transport, before the shake out. This is the best vibratory conveyor machine if you want to take out the castings by manipulator or if you have to cross a distance before the shake out. A further application is to feed very heavy castings diretly after the shake out.

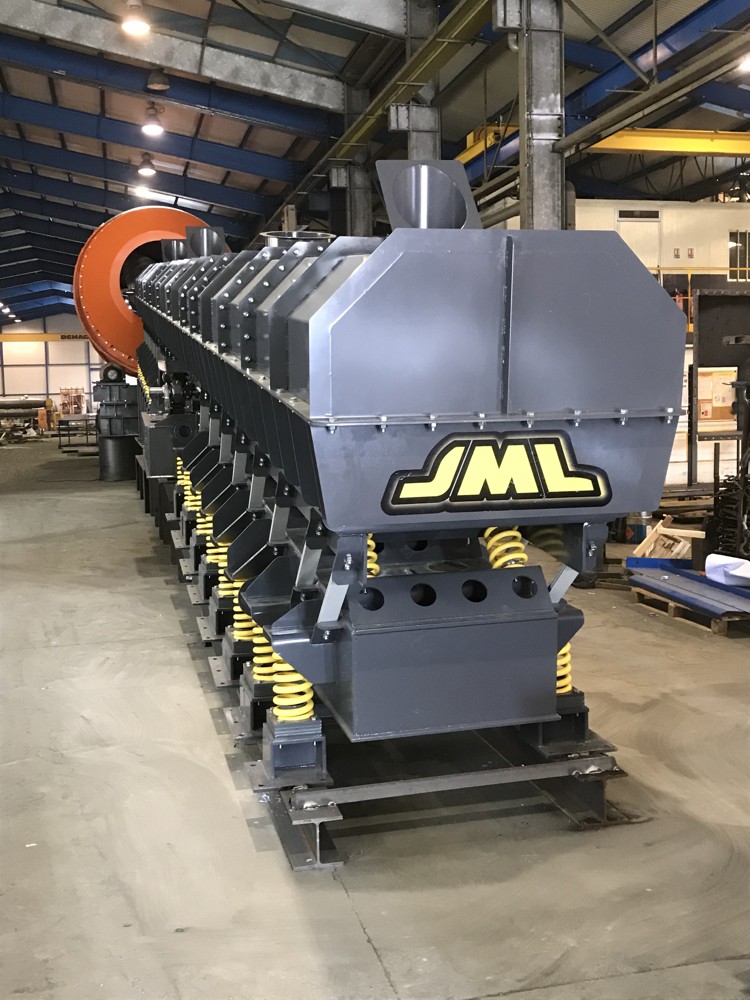

The length of the conveyor can be adapted. For the longer tunnels, the technology used differs slightly. This is where the inertia technology is used to propel the pieces down the tunnel. This helps equalize of the weight across the tunnel to help drive the pieces forward.

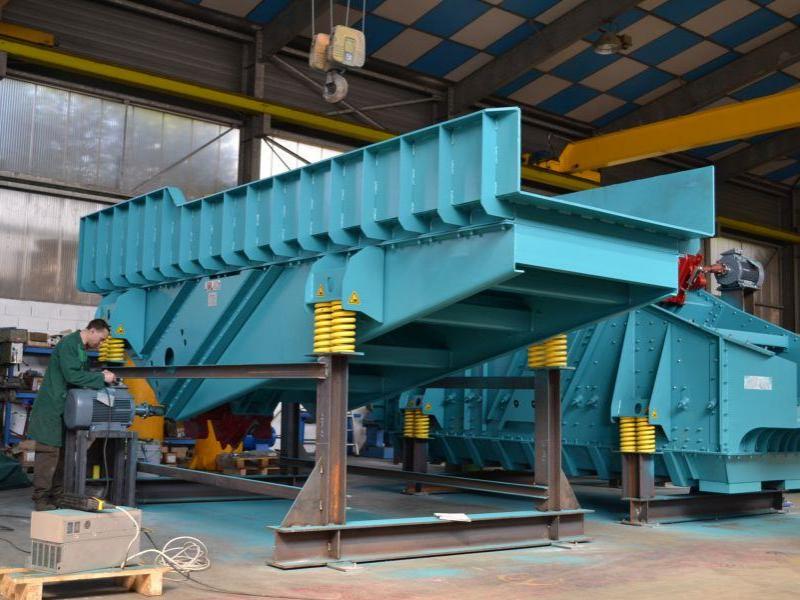

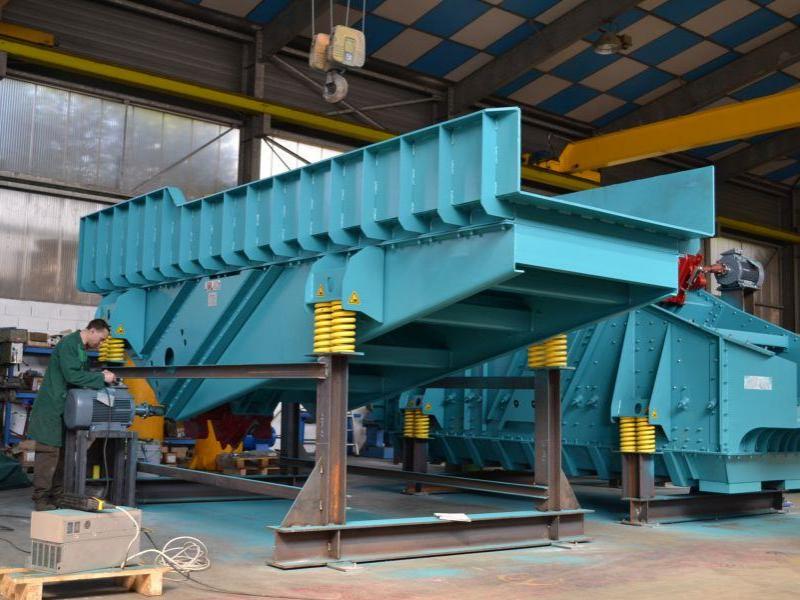

Steel springs are always used. Rubber springs are never used in a JML Industrie vibrating conveyor.

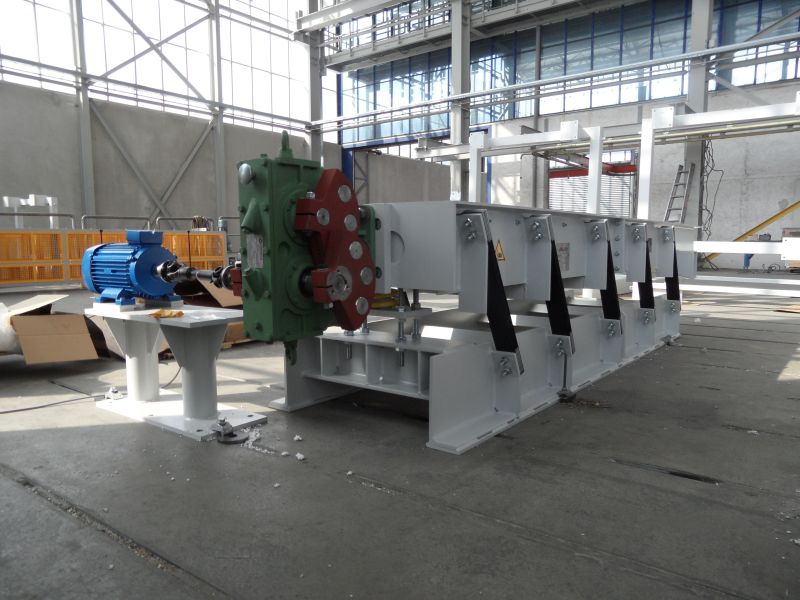

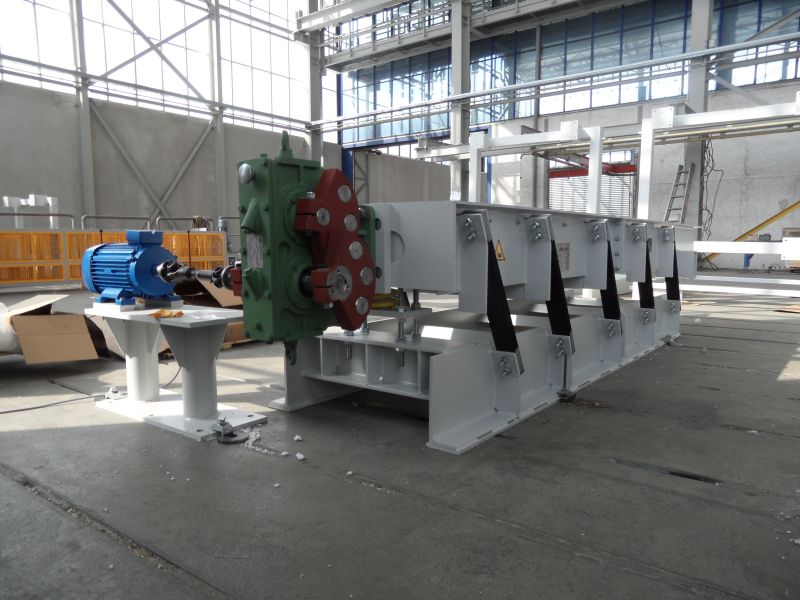

The structure of the slider crank drive is simple yet ingenious. It has one or two eccentric shafts depending on the design of the vibratory conveyor and has the advantage of transmitting a defined force and a defined mechanical load.

  • German engineering
  • Hard wearing steel springs
  • Wear plate choice
  • Long service life
  • Simplified maintenance
  • Capacity = 220 t/h sand,18 t/h castings/h
  • Length = 5.600 mm to 8.500 mm
  • Width= 1.400 mm
  • Maximum weight of castings = 450 kg
  • Temperature of castings = 650 °C
  • Temperature of sand = 450 °C

Unbalance Motors at the side or at the back depending on requirements and your layout. Different wear plates are available in S 235 JRG 2, Hardox or others. Rubber inlet against noise between trough and wear plates are available.

Co-oscilating hood with dedusting exhaust is available as an option. Heating elements are also available as an option against sand cake.

The machine trough can be designed as an exchangeable trough made of Hardox 400 or as a trough made of steel with wear plates made of steel or manganese steel.

Standard dimensions:
Length :
1.000 mm, 1.500 mm, 2.000 mm, 2.500 mm, 3.000 mm, 3.500 mm, 4.000 mm, 4.500 mm, 5.000 mm, 5.500 mm, 6.000 mm, 6.500 mm, 7.000 mm, 7.500 mm, 8.000 mm.
Width : 400 mm, 600 mm, 800 mm, 1.000 mm, 1.200 mm, 1.400 mm, 1.600 mm, 1.800 mm, 2.000 mm.

The vibrating conveyor is not limited to the above mesurements. Please get in touch to discuss your specific requirements.

Vibrating data
1.000 1/min avec 8 mm d’amplitude, 1.500 1/min avec 3 mm Amplitude.

Electric power
0,5 kW – 16 kW
